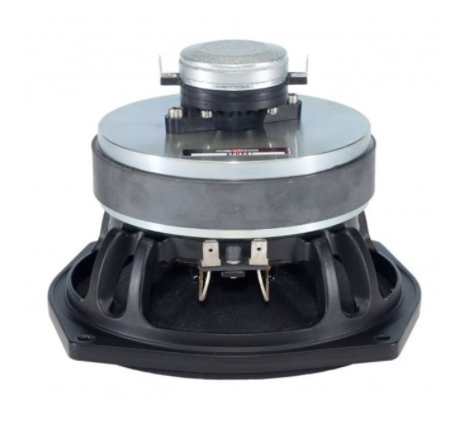

B&C - 6FHX51

B&C – 6FHX51

€156,82

6FHX51 — 170 mm (6.5 in), 8 Ω, 85 Hz – 18000 Hz, 51 mm (2 in)

300 W continuous program power capacity
70° nominal coverage
85 – 18000 Hz response
93 dB sensitivity
20.1 mm (0.79”) HF unit exit diameter

Nominal impedance - Ohm

Wissen

SKU: BC-6FHX51 Categorie: LF Coaxials Tags: B&C Speakers, Ferrite Merk: B&C Speakers

Beschrijving
Aanvullende informatie

Specifications

Nominal Diameter	170 mm (6.5 in)
Nominal Impedance	8 Ω
Frequency Range	85 Hz – 18000 Hz
Minimum Impedance	6.5 Ω
Voice Coil Diameter	51 mm (2 in)
Winding Material	Copper
Former Material	Kapton
Winding Depth	13 mm (0.51 in)
Magnetic Gap Depth	6 mm (0.24 in)
Flux Density	1.05 T
Woofer Cone Treatment	WP Waterproof Front Side
Inductance	0.1 mH
Diaphragm Material	Polyester
Magnet Material	Ferrite (LF) – Neodym. Ring (HF)
Fs	85 Hz
Re	5.5 Ω
Qes	0.4
Qms	7.8
Qts	0.37
Vas	5 dm³ (0.18 ft³)
Sd	132 cm² (20.5 in²)
η0	0.83 %
Xvar	5.7 mm
Mms	16 g
Bl	11.3 Tm
Le	1 mH
EBP	213 Hz
Overall Diameter	187 mm (7.4 in)
Bolt Circle Diameter	172 mm (6.7 in)
Baffle Cutout Diameter	146 mm (5.75 in)
Depth	122 mm (4.8 in)
Flange and Gasket Thickness	12 mm (0.47 in)
Net Weight	2.6 kg (5.73 lb)
Shipping Units	1 pcs
Shipping Weight	3.05 kg (6.72 lb)
Shipping Box	255x255x150 mm (10.04×10.04×5.91 in)

Manufacturer specifications: 6FHX51 at bcspeakers.com.

Nominal impedance - Ohm	8
