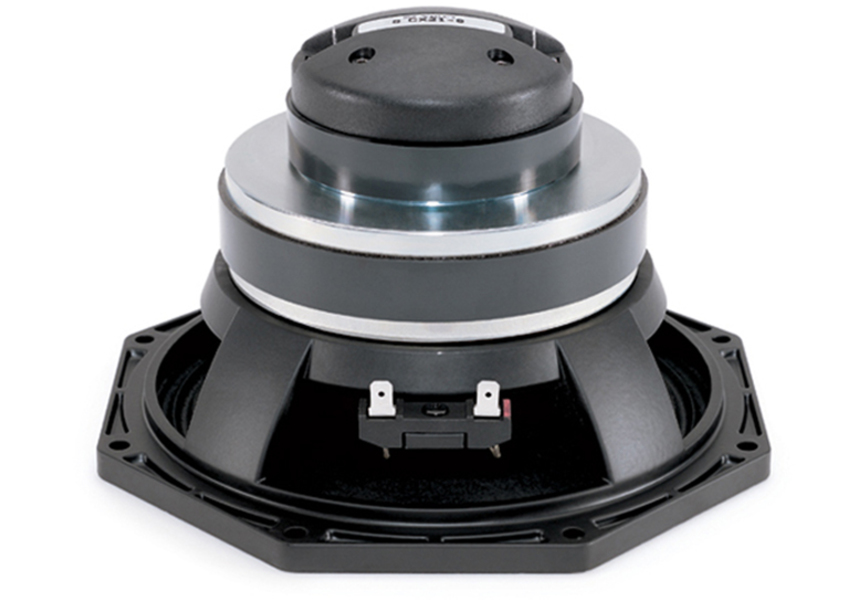

B&C - 8CX21

B&C – 8CX21

€196,02

8CX21 — 210 mm (8 in), 8 Ω, 75 Hz – 20000 Hz, 52 mm (2 in)

400 W continuous program power capacity
100° nominal coverage
75 – 20000 Hz response
94 dB sensitivity
34.5 mm (1.35”) HF unit exit diameter
FB08CX21 dedicated crossover network

Nominal impedance - Ohm

Wissen

SKU: BC-8CX21 Categorie: LF Coaxials Tags: B&C Speakers, Ferrite Merk: B&C Speakers

Beschrijving
Aanvullende informatie

Specifications

Nominal Diameter	210 mm (8 in)
Nominal Impedance	8 Ω
Frequency Range	75 Hz – 20000 Hz
Minimum Impedance	6.1 Ω
Voice Coil Diameter	52 mm (2 in)
Winding Material	Copper
Former Material	Kapton
Winding Depth	16 mm (0.63 in)
Magnetic Gap Depth	8 mm (0.31 in)
Flux Density	1.1 T
Woofer Cone Treatment	WP Waterproof Front Side
Inductance	0.14 mH
Diaphragm Material	Polyester
Magnet Material	Ferrite
Fs	74 Hz
Re	5.2 Ω
Qes	0.39
Qms	4.1
Qts	0.36
Vas	15 dm³ (0.55 ft³)
Sd	220 cm² (34.1 in²)
η0	1.5 %
Xvar	5.5 mm
Mms	21 g
Bl	11.5 Tm
Le	1.2 mH
EBP	190 Hz
Overall Diameter	225 mm (8.8 in)
Bolt Circle Diameter	210 mm (8.3 in)
Baffle Cutout Diameter	187 mm (7.4 in)
Depth	135 mm (5.3 in)
Flange and Gasket Thickness	11 mm (0.4 in)
Net Weight	4.1 kg (9.04 lb)
Shipping Units	1 pcs
Shipping Weight	4.7 kg (10.36 lb)
Shipping Box	295x314x175 mm (11.61×12.36×6.89 in)

Manufacturer specifications: 8CX21 at bcspeakers.com.

Nominal impedance - Ohm	8
